Hey there! I'm a rep from a CNC turning supplier, and I'm stoked to dive into the main components of a CNC turning machine with you. Whether you're a newbie looking to learn the ropes or a seasoned pro wanting to brush up on your knowledge, this blog is for you.
Let's kick things off by understanding what a CNC turning machine actually does. In simple terms, it's a computer-controlled lathe that shapes cylindrical parts by rotating the workpiece against a cutting tool. These machines are super versatile and are used in a ton of industries, from automotive to aerospace.
Now, let's get into the nitty-gritty of the main components of a CNC turning machine.
1. Bed
The bed is like the foundation of the CNC turning machine. It's a heavy, rigid structure that provides support for all the other components. Made from high-quality cast iron or steel, the bed needs to be sturdy enough to withstand the forces generated during the machining process. It's designed to minimize vibrations, which is crucial for achieving high-precision cuts. If the bed isn't stable, it can lead to poor surface finishes and inaccurate dimensions of the machined parts.
2. Headstock
The headstock is located at one end of the bed. It houses the main spindle, which is responsible for rotating the workpiece. The spindle is powered by a motor, and it can rotate at different speeds depending on the requirements of the machining operation. The headstock also contains gears and pulleys that transmit power from the motor to the spindle. Some advanced CNC turning machines have variable speed spindles, which allow for greater control over the machining process.
3. Tailstock
On the opposite end of the bed from the headstock is the tailstock. Its main function is to support the free end of the long workpieces during machining. The tailstock has a quill, which can be moved in and out using a handwheel or a power feed mechanism. The quill holds a center or a tool, such as a drill or a reamer, that can be used to perform operations on the end of the workpiece. It helps to prevent the workpiece from bending or vibrating during machining, ensuring better accuracy.
4. Tool Turret
The tool turret is a critical component of a CNC turning machine. It's a rotating device that holds multiple cutting tools. The CNC system can automatically select and position the appropriate tool for each machining operation. This significantly reduces the setup time between different operations, making the machining process more efficient. The tool turret can hold a variety of cutting tools, such as turning tools, boring tools, and threading tools. By having multiple tools at its disposal, the machine can perform complex machining operations in a single setup.
5. Tool Holder
Tool holders are used to securely hold the cutting tools in the tool turret. They come in different shapes and sizes depending on the type of tool and the machining requirements. A good tool holder ensures that the cutting tool is properly positioned and centered, which is essential for achieving accurate cuts. It also helps to absorb the cutting forces and prevent the tool from vibrating or shifting during machining. Some tool holders are designed to be adjustable, allowing for fine-tuning of the tool position.
6. Control Panel
The control panel is the interface between the operator and the CNC turning machine. It's where the operator can input the machining program, set the operating parameters, and monitor the machining process. The control panel usually has a display screen that shows information such as the current position of the cutting tool, the spindle speed, and the feed rate. Advanced control panels may also have touchscreen capabilities, making it easier for the operator to interact with the machine. The CNC system stored in the control panel interprets the machining program and sends commands to the various components of the machine to carry out the desired operations.
7. Coolant System
During the machining process, a lot of heat is generated due to the friction between the cutting tool and the workpiece. The coolant system is used to cool and lubricate the cutting area. It sprays a coolant, which is usually a mixture of water and oil, onto the cutting tool and the workpiece. The coolant helps to reduce the temperature, prevent tool wear, and flush away the chips produced during machining. There are different types of coolant systems, such as flood coolant systems and mist coolant systems. Flood coolant systems provide a continuous flow of coolant to the cutting area, while mist coolant systems spray a fine mist of coolant.
8. Chip Conveyor
As the cutting tool removes material from the workpiece, chips are produced. The chip conveyor is a device that removes these chips from the machining area. It helps to keep the work area clean and prevents the chips from accumulating around the cutting tool, which can affect the machining process. There are several types of chip conveyors, including chain conveyors, screw conveyors, and belt conveyors. Chain conveyors are commonly used in CNC turning machines because they are durable and can handle large volumes of chips.
9. Chuck
The chuck is a device that holds the workpiece securely on the spindle. There are different types of chucks, such as three-jaw chucks and four-jaw chucks. Three-jaw chucks are self-centering, which means they can automatically center the workpiece on the spindle. They are easy to use and are suitable for holding round workpieces. Four-jaw chucks, on the other hand, have independent jaws that can be adjusted individually. This makes them more versatile and suitable for holding irregularly shaped workpieces.
10. Servo Motors
Servo motors are used to control the movement of the cutting tool and the workpiece. They work in conjunction with the CNC system to provide precise and accurate motion control. The servo motors receive commands from the CNC system and adjust the position, speed, and acceleration of the machine components accordingly. High-performance servo motors are essential for achieving high precision and fast machining speeds.

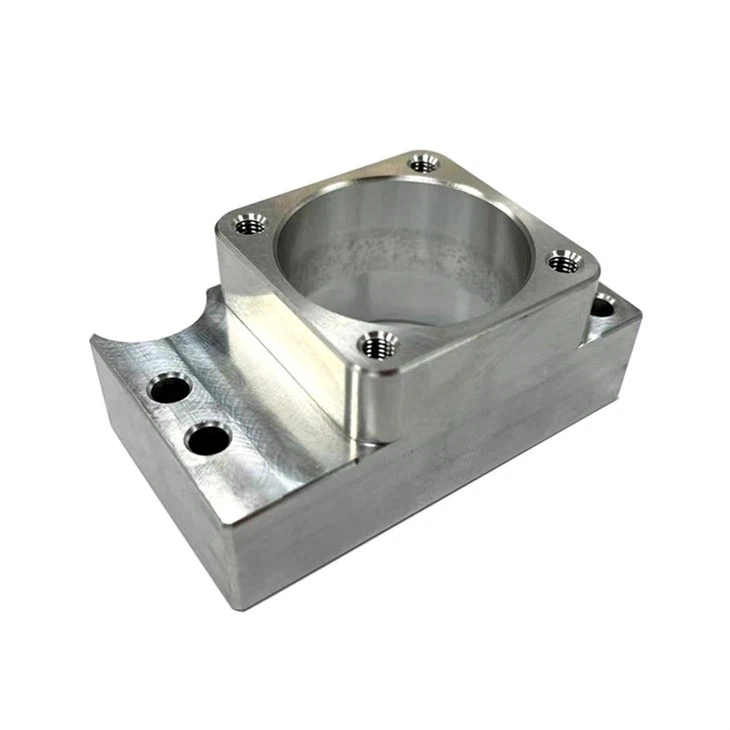

If you're in the market for high-quality CNC turning, we've got you covered. We offer an extensive range of CNC turning parts. Check out our CNC Turning Parts With Custom Surface Finishes for parts that are customized to your surface finish requirements. Our CNC Turning Aluminum Parts are perfect for applications where lightweight and corrosion resistance are needed. And if you need OEM parts, our OEM CNC Machining Turning Parts are a great choice.
We take pride in providing top-notch CNC turning services. Our experienced team uses state-of-the-art equipment to ensure that every part we produce meets the highest quality standards. If you're interested in our products or services, don't hesitate to reach out and start a procurement discussion. We're here to assist you and provide solutions that fit your specific needs.
References
- Groover, M. P. (2017). Fundamentals of Modern Manufacturing: Materials, Processes, and Systems. Wiley.
- Paul, G. (2016). CNC Programming Handbook: Programming for Mill and Lathe. Industrial Press.
