In the dynamic world of manufacturing, CNC (Computer Numerical Control) machining stands as a cornerstone for producing high - quality steel parts. As a reliable CNC steel parts supplier, I've witnessed firsthand the challenges that come with this precision - driven process. In this blog, I'll delve into the common manufacturing errors in CNC steel parts and share effective prevention methods.
1. Dimensional Deviations
Dimensional accuracy is of utmost importance in CNC steel parts manufacturing. Even the slightest deviation can render a part useless, leading to costly rework or even complete rejection.
Common Causes
- Tool Wear: Over time, cutting tools wear down. This affects the cutting diameter and can lead to parts being undersized. For example, a worn - out end mill may cut a hole with a smaller diameter than specified.
- Thermal Expansion: During the machining process, heat is generated. Steel expands when heated, and if the cooling system is not efficient, the part may cool and contract to a size different from the intended dimensions.
- Incorrect Programming: A simple error in the CNC program, such as an incorrect coordinate or a wrong feed rate, can result in dimensional inaccuracies.
Prevention Methods
- Regular Tool Inspection and Replacement: Implement a strict tool management system. Set a limit on the number of parts a tool can machine or monitor the tool's wear through visual inspection or using tool monitoring equipment. Replace worn - out tools promptly to ensure consistent cutting performance.
- Thermal Management: Use efficient cooling systems, such as coolant pumps, to keep the temperature stable during machining. Consider pre - heating or pre - cooling the workpiece to reduce the impact of thermal expansion. Additionally, allow the part to cool to room temperature before measuring its dimensions.
- Program Verification: Before starting production, thoroughly review and simulate the CNC program. Use simulation software to check for any potential errors in the code. Have a second programmer review the code to catch any overlooked mistakes.
2. Surface Roughness Issues
The surface finish of a CNC steel part is crucial, especially for parts that will be in contact with other components or need to have a certain aesthetic appearance.
Common Causes
- Tool Selection: Using the wrong type of cutting tool or a tool with a dull edge can cause rough surfaces. For instance, a ball - nose end mill may not be suitable for a flat surface finish, resulting in visible tool marks.
- Feed and Speed Settings: Incorrect feed rates and spindle speeds can lead to uneven cutting and poor surface finishes. A high feed rate combined with a low spindle speed may cause the tool to tear the material rather than cut it cleanly.
- Chip Evacuation: If chips are not properly removed from the cutting area, they can get trapped between the tool and the workpiece, causing scratches and a rough surface.
Prevention Methods
- Proper Tool Selection: Choose the appropriate cutting tool based on the material, the required surface finish, and the geometry of the part. Use sharp tools and ensure they are properly ground. Consider using coated tools for better cutting performance and longer tool life.
- Optimize Feed and Speed Settings: Conduct tests to determine the optimal feed rate and spindle speed for the specific steel material and cutting operation. Refer to the tool manufacturer's recommendations and adjust the settings based on the results of the tests.
- Effective Chip Evacuation: Use chip breakers on the cutting tool to break the chips into smaller, more manageable pieces. Ensure that the coolant flow is directed towards the cutting area to flush away the chips. Consider using chip conveyors to remove chips from the work area quickly.
3. Burr Formation
Burrs are small, unwanted projections of material that form on the edges of a machined part. They can be a safety hazard, interfere with the assembly of parts, and affect the overall quality of the product.
Common Causes
- Tool Exit: When the cutting tool exits the workpiece, it can cause a burr to form on the exit side. This is especially common in drilling and milling operations.
- Material Properties: Some steel materials are more prone to burr formation than others. For example, materials with high ductility may form larger burrs during machining.
- Low Cutting Forces: Insufficient cutting forces can cause the material to deform rather than be cut cleanly, leading to burr formation.
Prevention Methods
- Burr - Free Machining Techniques: Use techniques such as chamfering or deburring tools during the machining process to prevent burrs from forming. For example, a chamfer mill can be used to create a beveled edge, reducing the likelihood of burrs at the tool exit.
- Material Selection and Treatment: If possible, choose a steel material that is less prone to burr formation. Heat - treating the material before machining can also improve its machinability and reduce burr formation.
- Optimal Cutting Parameters: Adjust the cutting parameters, such as the feed rate, spindle speed, and depth of cut, to ensure sufficient cutting forces. A higher feed rate and a lower spindle speed may sometimes be more effective in reducing burrs.
4. Cracks and Porosity
Cracks and porosity in CNC steel parts can significantly weaken the part's structure and lead to premature failure.
Common Causes
- Heat Treatment Issues: Incorrect heat treatment processes, such as rapid cooling or overheating, can cause internal stresses in the steel, leading to cracks.
- Material Defects: The raw steel material may have inherent defects, such as porosity or inclusions, which can be exacerbated during machining.
- High - Speed Machining: Machining at extremely high speeds can generate excessive heat and stress, increasing the risk of cracks and porosity.
Prevention Methods
- Proper Heat Treatment: Follow a well - defined heat treatment process. Use a heat treatment furnace with precise temperature control. Monitor the cooling rate carefully to avoid rapid temperature changes that can cause internal stresses.
- Material Inspection: Before starting machining, thoroughly inspect the raw steel material for any defects. Use non - destructive testing methods, such as ultrasonic testing or magnetic particle inspection, to detect internal flaws.
- Optimal Machining Speeds: Avoid machining at excessively high speeds. Find the right balance between productivity and the quality of the part. Use cutting parameters that minimize heat generation and stress on the workpiece.
5. Burr and Flash
Burrs and flash are often caused by improper clamping or excessive material deformation during the machining process.
Common Causes
- Clamping Issues: If the workpiece is not clamped securely, it can move during machining, causing burrs and flash. Additionally, using the wrong type of clamp or applying too much pressure can deform the workpiece.
- Excessive Material Removal: Removing too much material in a single pass can cause the material to deform and create burrs and flash.
Prevention Methods
- Proper Clamping: Use the appropriate clamping method for the part's shape and size. Ensure that the workpiece is clamped firmly but without causing excessive deformation. Consider using soft jaws or custom - made fixtures to hold the workpiece securely.
- Optimal Material Removal: Divide the material removal process into multiple passes. Use a roughing pass to remove the majority of the material and a finishing pass to achieve the final dimensions and surface finish. This reduces the stress on the workpiece and minimizes the formation of burrs and flash.

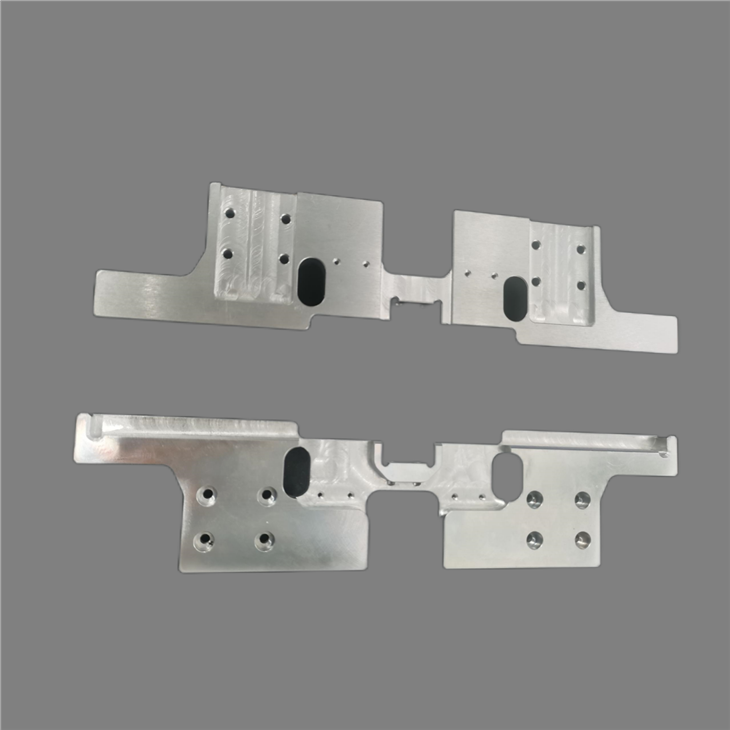

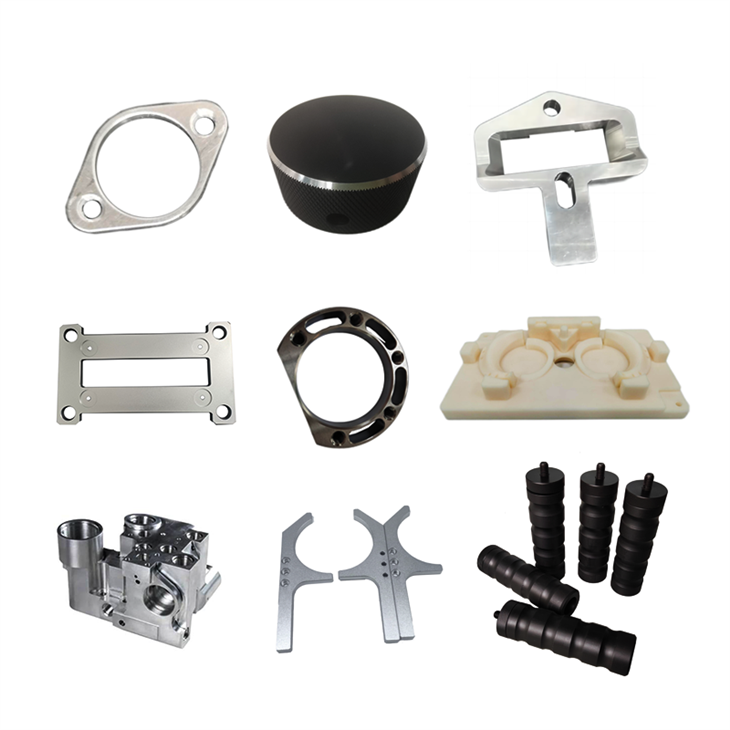

As a CNC steel parts supplier, we are committed to providing high - quality products to our customers. By understanding and addressing these common manufacturing errors, we can ensure that our parts meet the strictest quality standards. If you are in the market for CNC Titanium Parts, High Precision CNC Machining Device Parts, or High Precision Aluminum Parts, or any other CNC - machined components, we invite you to contact us for a quote and discuss your specific requirements. Our experienced team is ready to work with you to provide the best solutions for your manufacturing needs.
