As a supplier of wire EDM (Electrical Discharge Machining) equipment, I've had the privilege of interacting with numerous operators over the years. The role of a wire EDM operator is crucial in the manufacturing industry, as they are responsible for producing high - precision parts using this advanced technology. In this blog, I'll delve into the training requirements for wire EDM operators.
Basic Knowledge Training
Understanding of Electrical Discharge Machining Principles
Wire EDM is a non - traditional machining process that uses electrical discharges to remove material from a workpiece. Operators must have a solid understanding of how this process works. They need to know about the relationship between the electrode wire, the workpiece, and the dielectric fluid. The electrode wire, usually made of brass or copper, acts as a cutting tool. When a high - frequency electrical current is applied between the wire and the workpiece, sparks are generated, which erode the material from the workpiece.
The dielectric fluid, typically deionized water, serves multiple purposes. It cools the cutting area, flushes away the eroded material, and helps control the electrical discharges. Training should cover topics such as the appropriate voltage, current, and pulse duration settings for different materials and part geometries. For more in - depth knowledge about this process, you can refer to Electrical Discharge Wire - Cutting.
Familiarity with Workpiece Materials
Different materials have different electrical and thermal properties, which affect the wire EDM process. Operators need to be trained to understand the characteristics of common workpiece materials such as steel, aluminum, titanium, and exotic alloys. For example, steel is a widely used material, but its hardness and composition can vary significantly. Harder steels may require different cutting parameters compared to softer ones. Aluminum is a lightweight material but has high thermal conductivity, which can influence the heat dissipation during the EDM process.
Knowledge of material properties helps operators select the right wire type, cutting speed, and other process parameters to achieve the desired surface finish and dimensional accuracy. Training should also cover the potential challenges associated with each material, such as the formation of recast layers or micro - cracks.
Machine Operation Training
CNC Programming Skills
Most modern wire EDM machines are controlled by Computer Numerical Control (CNC) systems. Operators need to be proficient in CNC programming to create the necessary toolpaths for cutting the workpiece. They should understand basic G - code and M - code commands, which are used to control the movement of the wire, the start and stop of the machining process, and other functions.

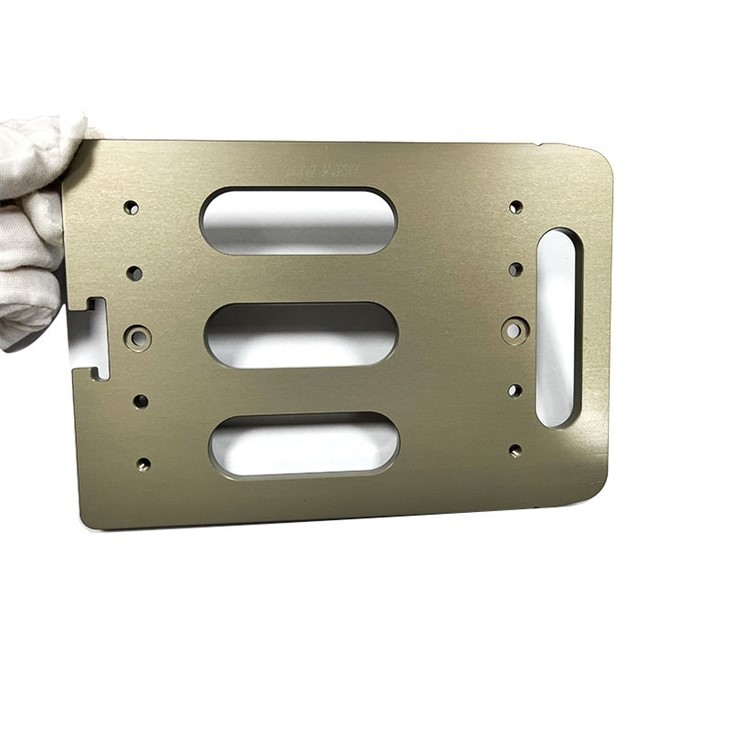

Training programs should include hands - on exercises where operators learn to program simple parts and gradually progress to more complex geometries. They need to be able to input the correct dimensions, cutting speeds, and feed rates into the CNC system. Additionally, operators should be familiar with CAD/CAM software, which can be used to generate the CNC programs more efficiently. This software allows them to design the part in a 3D environment and then automatically convert it into a CNC program. For more information on CNC - related aspects of wire EDM, CNC Wire EDM Parts provides useful insights.
Machine Setup and Maintenance
Proper machine setup is essential for achieving accurate and efficient wire EDM operations. Operators need to be trained on how to install the electrode wire correctly, adjust the wire tension, and set up the workpiece on the machine table. They should also know how to align the wire with the workpiece and ensure that the dielectric fluid is flowing properly.
Machine maintenance is another critical aspect of training. Operators should be able to perform routine maintenance tasks such as cleaning the machine, replacing worn - out parts, and checking the electrical and mechanical components. Regular maintenance helps prevent breakdowns and ensures the long - term reliability of the wire EDM machine. Training should cover the recommended maintenance schedules and procedures for different components of the machine.
Safety Training
Personal Protective Equipment (PPE)
Safety is of utmost importance in any manufacturing environment, and wire EDM is no exception. Operators must be trained to wear the appropriate personal protective equipment. This includes safety glasses to protect their eyes from flying debris and sparks, gloves to protect their hands from the wire and the dielectric fluid, and ear protection if the machine produces excessive noise.
Training should emphasize the importance of wearing PPE at all times during machine operation and provide guidelines on how to select and use the right equipment.
Hazard Awareness
Operators need to be aware of the potential hazards associated with wire EDM. The electrical discharges can pose a risk of electric shock, and the high - pressure dielectric fluid can cause injury if it leaks or splashes. There is also a risk of fire if the dielectric fluid catches fire due to overheating or electrical malfunctions.
Training programs should educate operators on how to identify these hazards and take appropriate preventive measures. They should know the location of emergency stop buttons, fire extinguishers, and first - aid kits in the workplace.
Quality Control Training
Dimensional Inspection
Accuracy is a key requirement in wire EDM, and operators need to be able to perform dimensional inspections of the machined parts. They should be familiar with measuring tools such as calipers, micrometers, and coordinate measuring machines (CMMs). Training should cover how to use these tools correctly to measure the part dimensions and ensure that they meet the specified tolerances.
Operators should also understand the concept of statistical process control (SPC) and how to use it to monitor the quality of the parts produced. SPC involves collecting and analyzing data on part dimensions over time to identify any trends or variations in the machining process.
Surface Finish Evaluation
In addition to dimensional accuracy, the surface finish of the machined parts is also important. Operators need to be trained to evaluate the surface finish using techniques such as visual inspection and surface roughness measurement. They should understand the factors that affect the surface finish, such as the cutting parameters, the wire type, and the material of the workpiece.
Training should provide guidelines on how to achieve the desired surface finish and how to troubleshoot any surface finish issues that may arise during the machining process.
Advanced Training and Continuous Learning
Process Optimization
Once operators have mastered the basic skills, they can benefit from advanced training on process optimization. This involves learning how to fine - tune the cutting parameters to improve the machining efficiency, reduce the cycle time, and enhance the quality of the parts. They can learn about techniques such as adaptive control, which adjusts the cutting parameters in real - time based on the machining conditions.
New Technology Adoption
The wire EDM industry is constantly evolving, with new technologies and techniques being developed regularly. Operators should be encouraged to stay updated on the latest advancements in wire EDM, such as new wire materials, improved CNC systems, and advanced monitoring and control technologies. Continuous learning helps operators remain competitive in the job market and allows them to contribute to the innovation and improvement of the manufacturing processes in their companies.
If you're interested in procuring high - quality wire EDM equipment or have any questions about wire EDM training and operations, feel free to reach out to us. We're here to provide you with the best solutions for your manufacturing needs.
